Mechanical Test
We evaluate the functions and impacts caused by stress such as physical stiffness, vibration, and shock that may occur during storage, transportation, and operation of the product, and provides the best test evaluation solution suitable for customer requirements with various test equipment and the optimal test evaluation technology.
Test Items
Vibration Test, Combined Vibration Test, Resonance Point Measurement and Durability Test, Shock Test, Acceleration Test, Environmental Stress Screening (ESS), Drop Test, Highly Accelerated Life Test (HALT), Connector Strength Test, Solder Bonding Strength Test

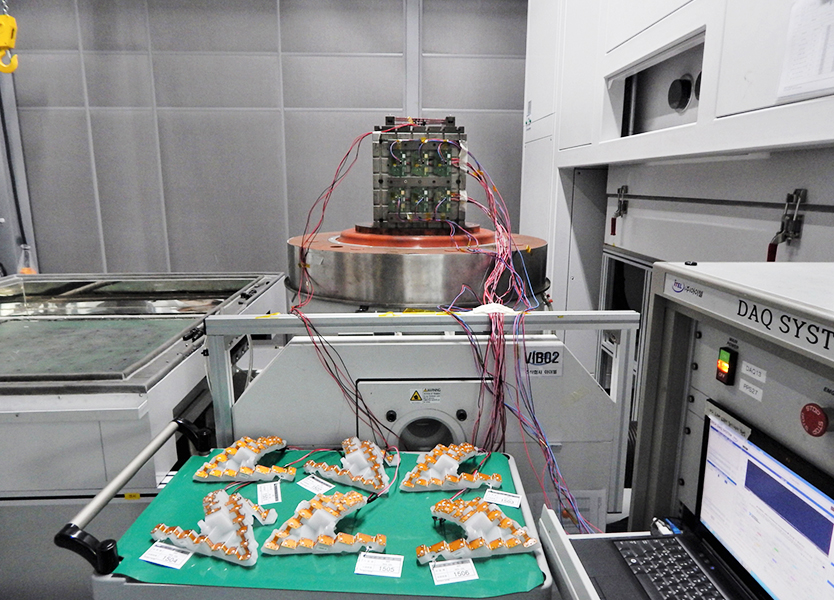

Vibration Test
Evaluation of the function and durability of the product on the impact of vibration during transportation and operation

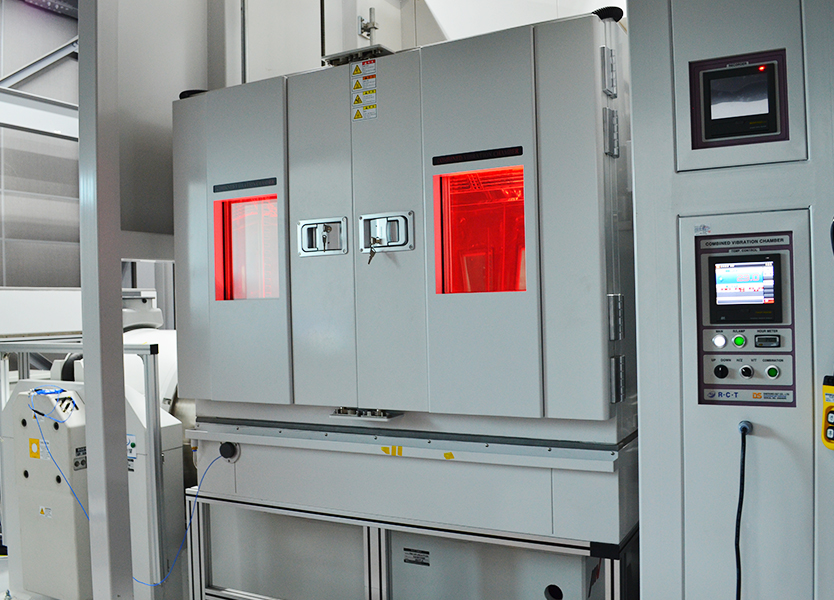

Combined Vibration Test
Evaluation of the function and durability of the product on the complex effects of temperature and vibration during transportation and operation

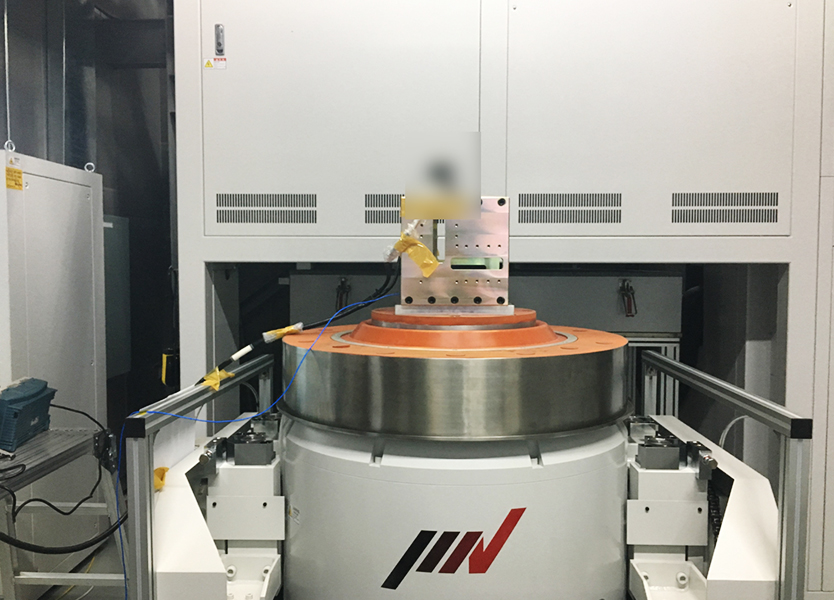

Resonance Point Measurement and Durability Test
Measuring the resonance point and evaluate the function and durability of the product at the resonance point
Shock Test
Evaluation of the function and durability of the product on the impact during transportation and operation
Acceleration Test
Evaluation of the function and structural stability of the product under continuous inertial load conditions

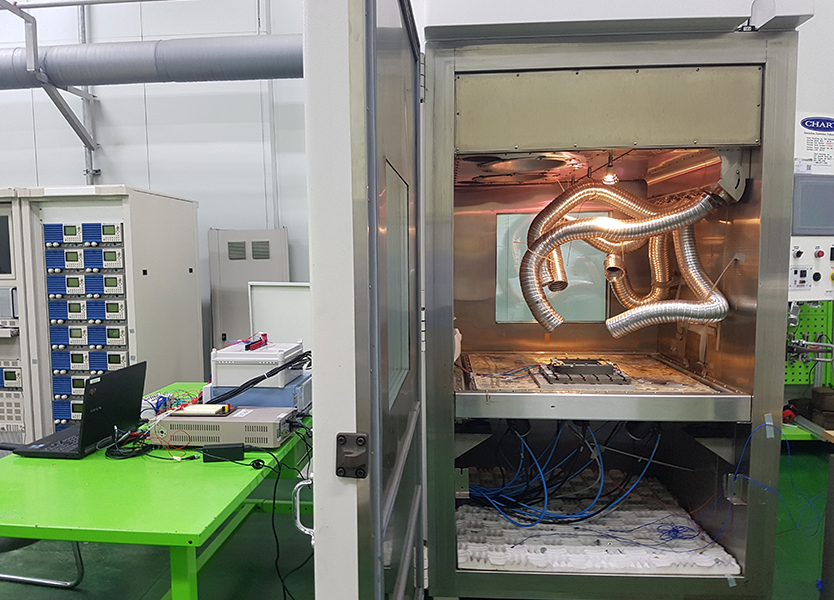

Environmental Stress Screening (ESS)
Evaluation of defects in the initial mass production of the product due to rapid temperature changes and vibration effects

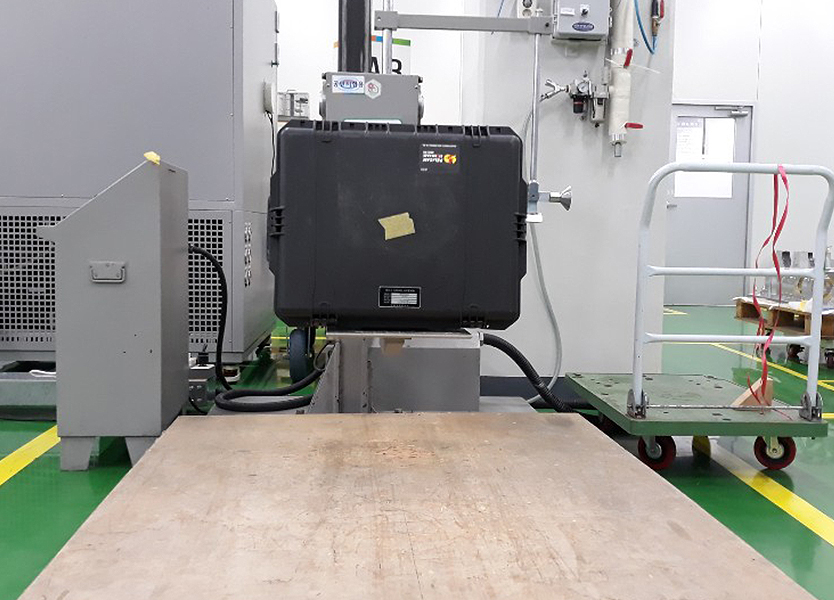

Drop Test
Evaluation of strength and structural stability of the product on the drop impacts during transportation and operation
Highly Accelerated Life Test (HALT)
Evaluation of product design margin and limit value by applying stepwise acceleration stress of temperature, temperature shock, and vibration

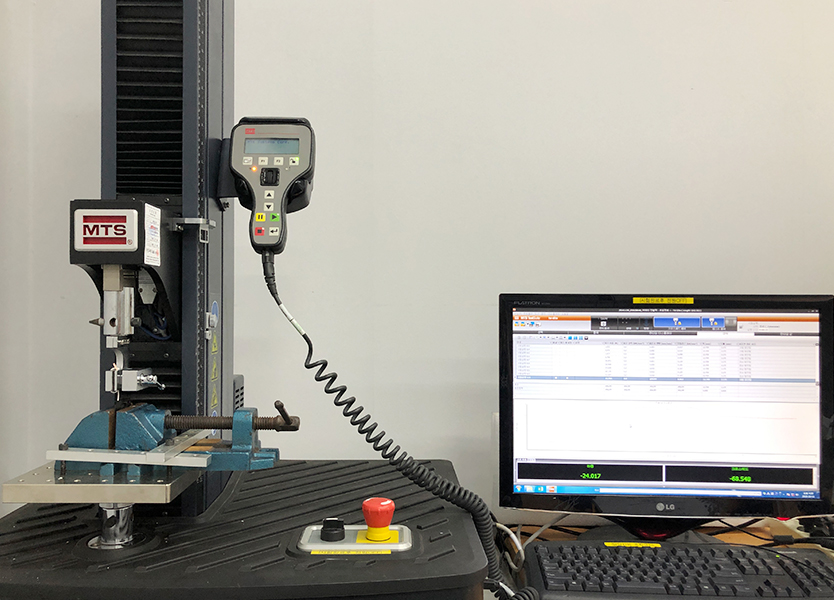

Connector Strength Test
Evaluation of strength and impact by insertion, removal and malfunction of connector

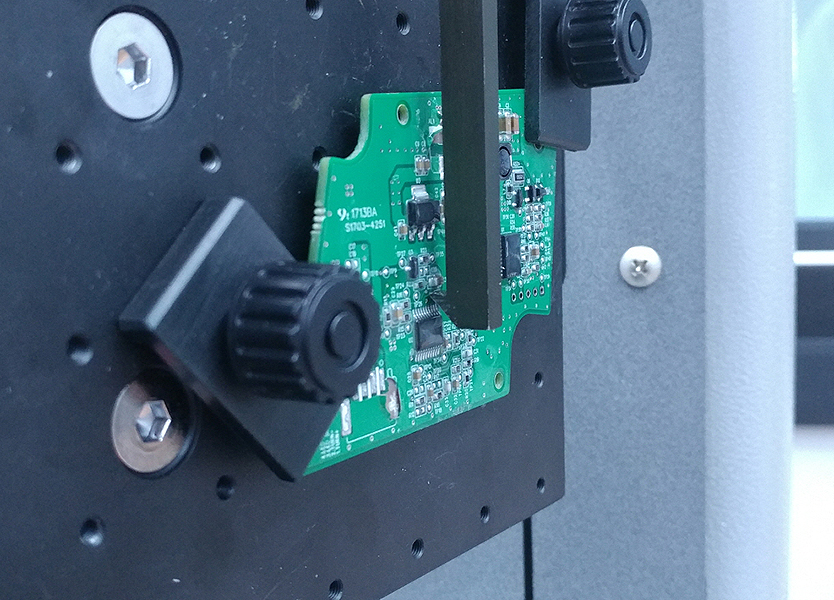

Solder Bonding Strength Test
Inspection of solder joint strength
Vibration Test
Combined Vibration Test
Resonance Point Measurement and Durability Test
Shock Test
Acceleration Test
Environmental Stress Screening (ESS)
Drop Test
Highly Accelerated Life Test (HALT)
Connector Strength Test
Solder Bonding Strength Test
Test Equipment

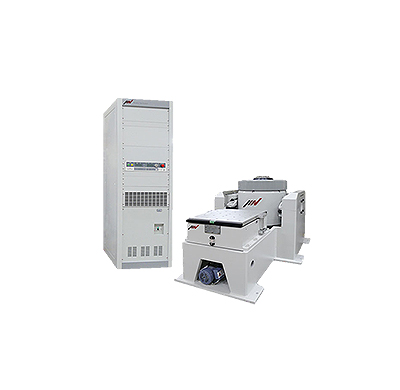

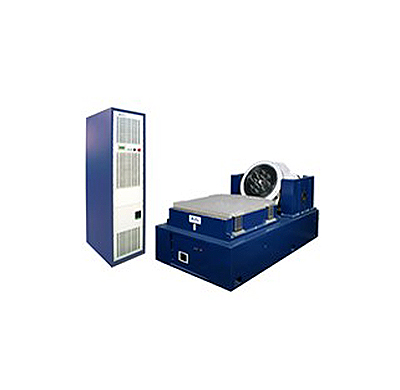

Vibration Shock Tester (4 Ton)
- Force : 40 kN
- Table Size : 800 x 800 mm
- Allowable load : Max. 500 Kg
Vibration Shock Tester (5.4 Ton)
- Force : 54 kN
- Table Size : 1000 x 1000 mm
- Allowable load : Max. 1000 kg
Vibration Shock Tester (8 Ton)
- Force: 80 kN
- Table Size : 900 x 900 mm
- Allowable load : Max. 1000 Kg

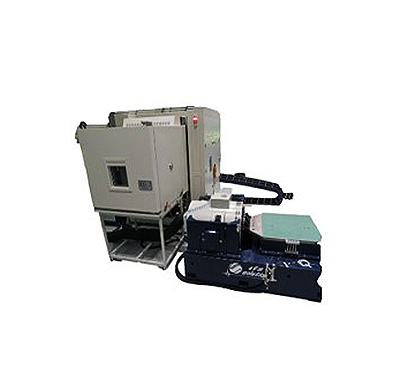

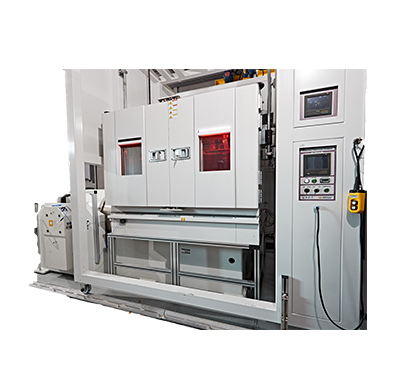

Combined Vibration Chamber (1000L)
- Temperature range : (-50 ~ 150) ℃
- Temperature change rate : 1 ℃/min

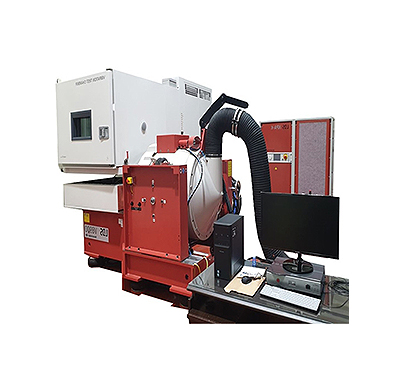

Combined Vibration Chamber (1700L/1800L)
- Temperature range : (-50 ~ 150) ℃
- Temperature change rate : 5 ℃/min

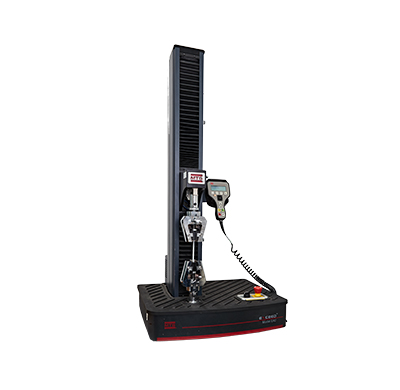

Universal Testing Machine
- Load : Max. 5 kN

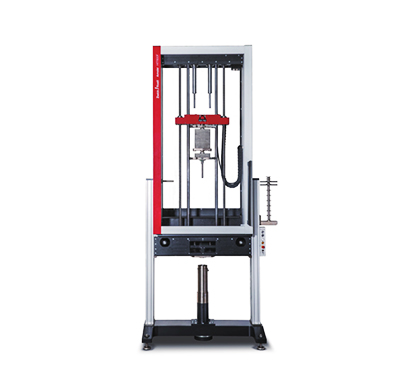

Shock Tester
- Maximum drop height : 1.3 m
- Load range : (2.04 ~ 40) kg
- Maximum test speed: 5 m/sec (Free-fall)
